分辨率 尺寸
(inch)		 产品图 型 号 外形尺寸
WxHxT (mm)		 视域尺寸
WxH (mm)		 字符尺寸/点间距)
WxH (mm)		 点尺寸
WxH (mm)		 接口模式 电压
(V)		 控制器

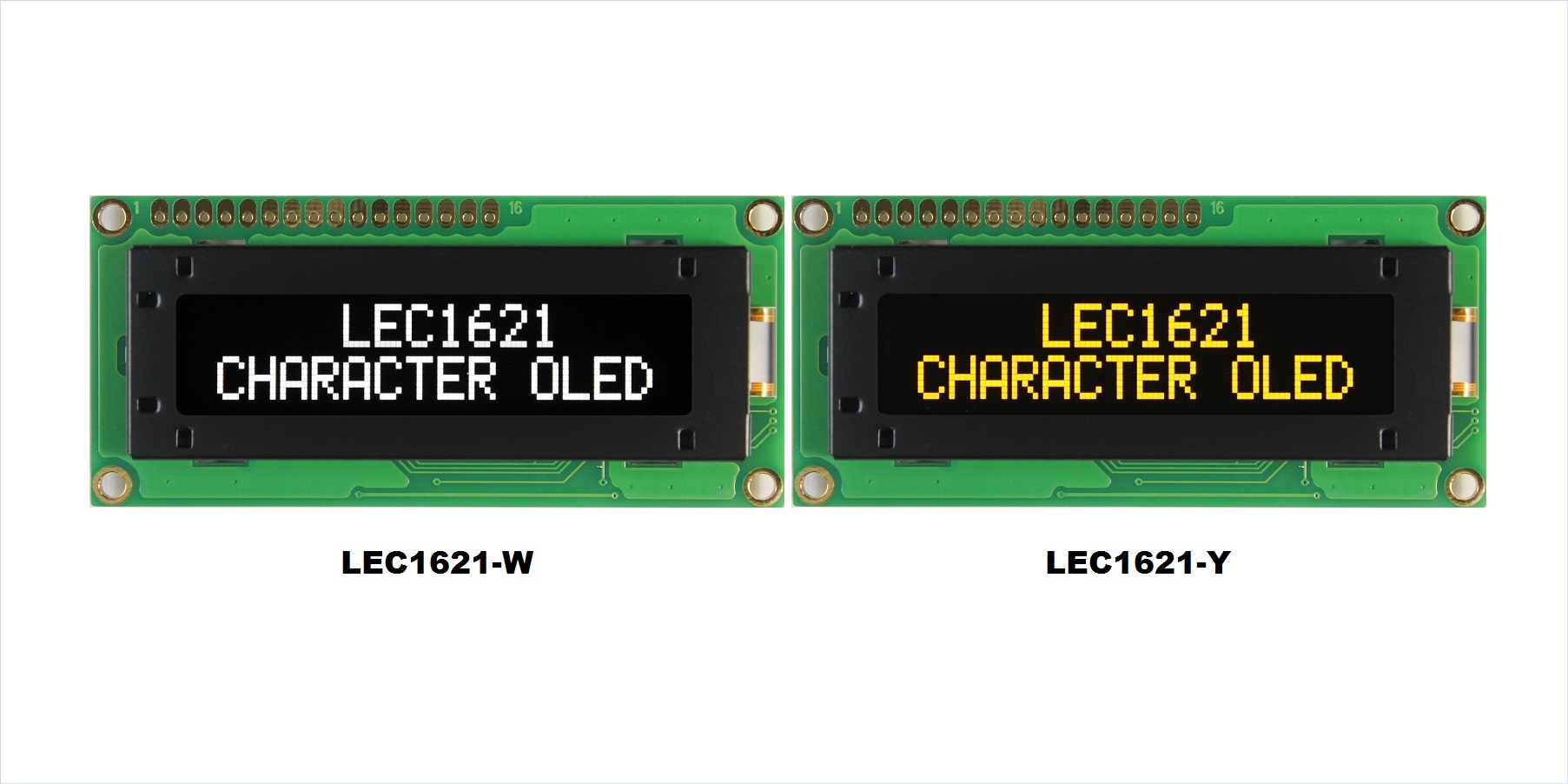

16x2 2.26 LEC1621-S LEC1621-S 80.0x36.0x9.5 58.2x13.5 2.97x5.57 0.57x0.67 SPI, I2C 3.3-5.5 US2011
16x2 2.26 LEC1621-P LEC1621-P 80.0x36.0x9.5 58.2x13.5 2.97x5.57 0.57x0.67 4/8-BIT 68/80 3.3-5.5 US2011

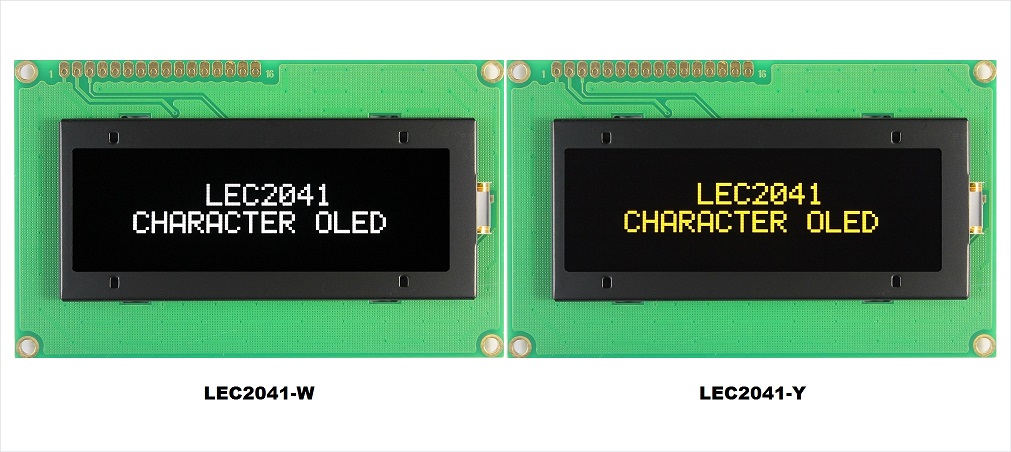

20x4 2.89 LEC2041-S LEC2041-S 98.0x60.0x9.5 73.0x24.0 2.97x4.77 0.57x0.57 SPI, I2C 3.3-5.5 US2011
20x4 2.89 LEC2041-P LEC2041-P 98.0x60.0x9.5 73.0x24.0 2.97x4.77 0.57x0.57 4/8-BIT 68/80 3.3-5.5 US2011

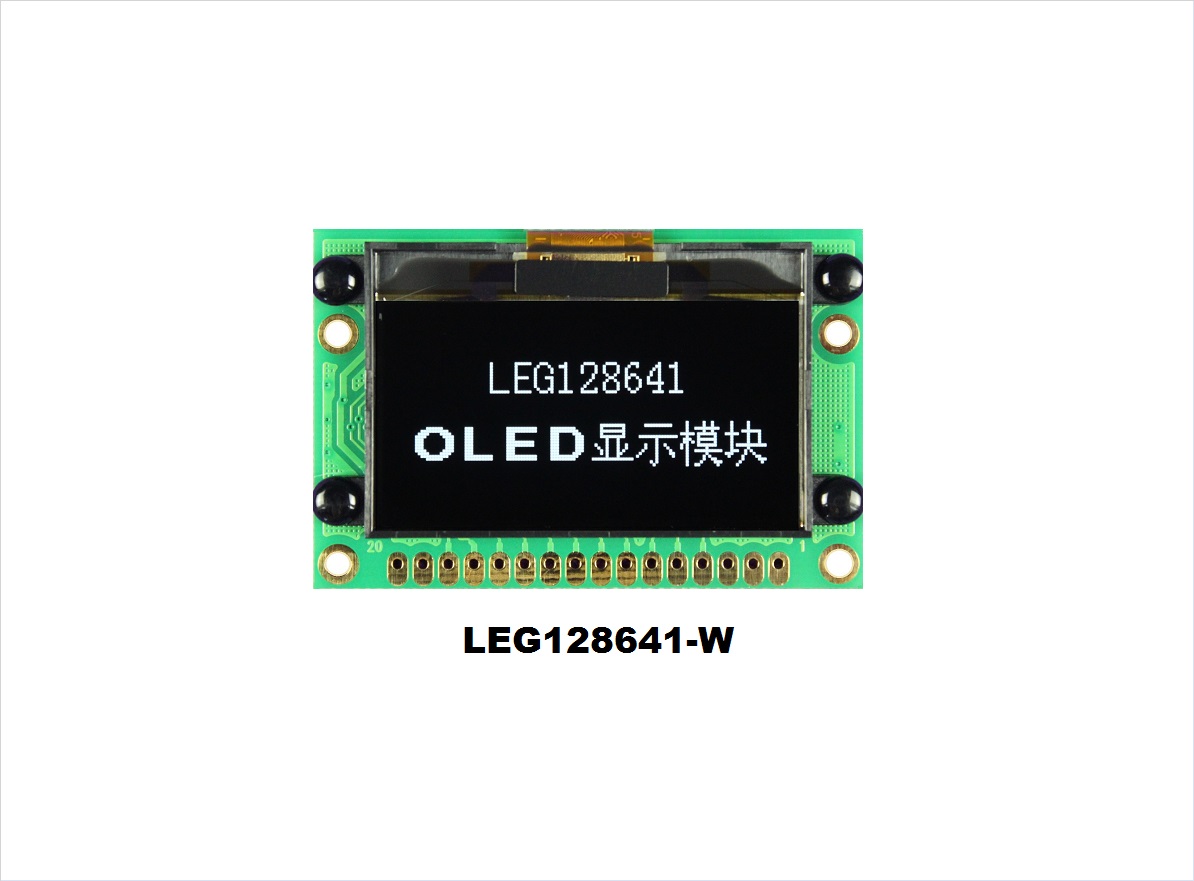

128x64 1.54 LEG128641 LEG128641 55.0x36.0x8.0 37.5x19.5 0.274x0.274 0.254x0.254 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z

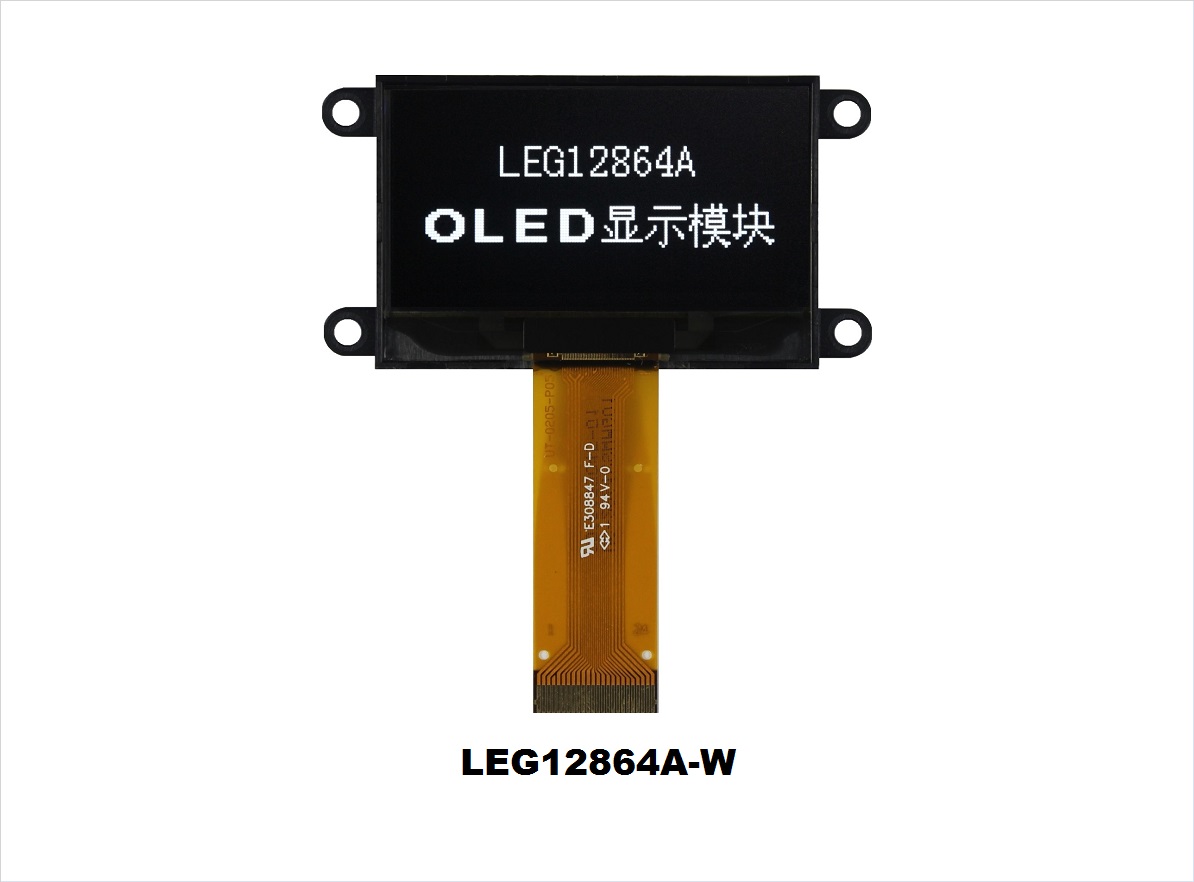

128x64 1.54 LEG12864A LEG12864A 55.0x29.2x3.5 37.5x19.5 0.274x0.274 0.254x0.254 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z

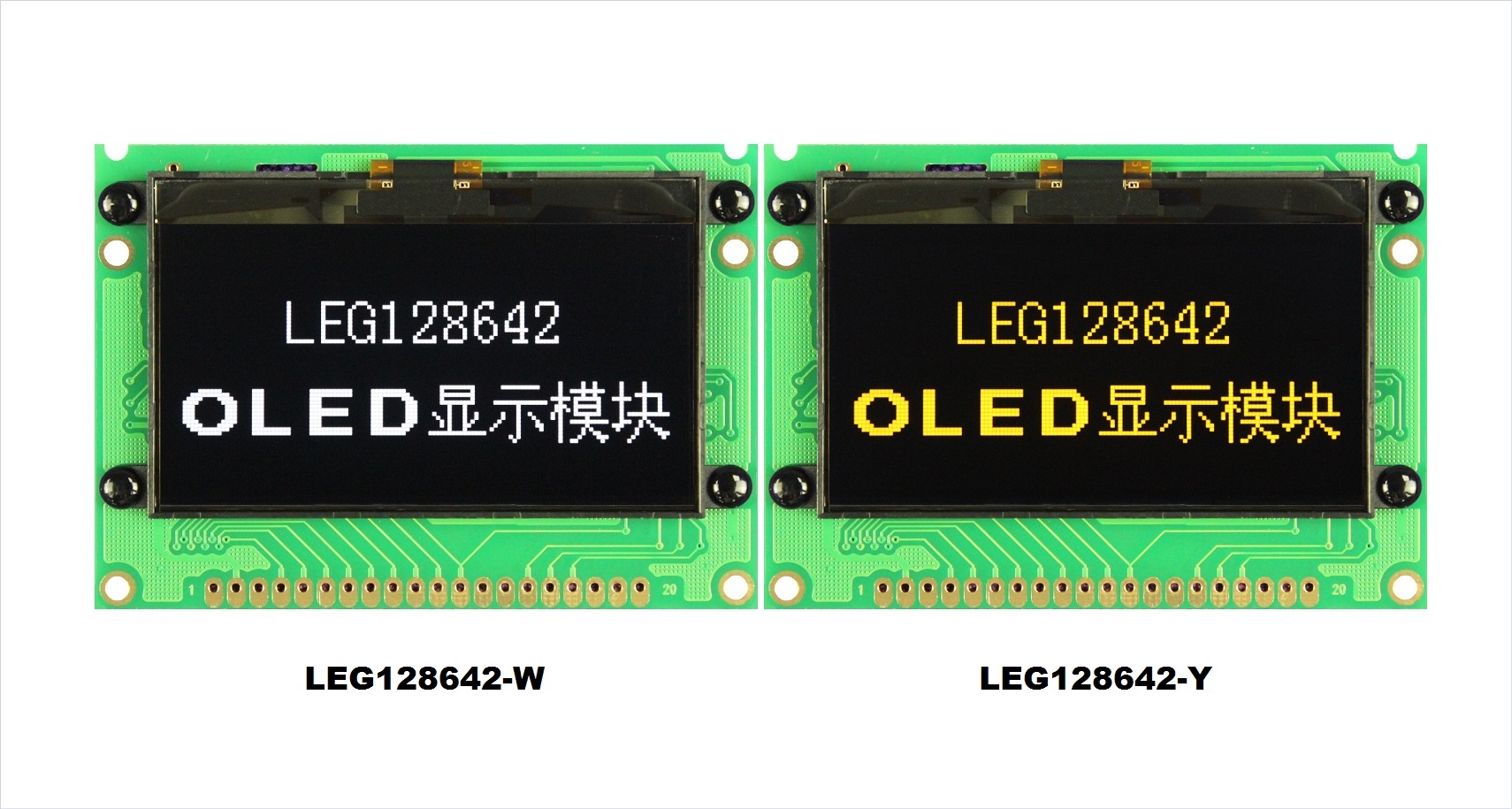

128x64 2.42 LEG128642-3.3V LEG128642-3.3V 75.0x52.7x8.0 57.0x29.5 0.43x0.43 0.40x0.40 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z
128x64 2.42 LEG128642-5V LEG128642-5V 75.0x52.7x8.0 57.0x29.5 0.43x0.43 0.40x0.40 8-BIT 68/80, SPI, I2C 3.3-5.5 SSD1309Z

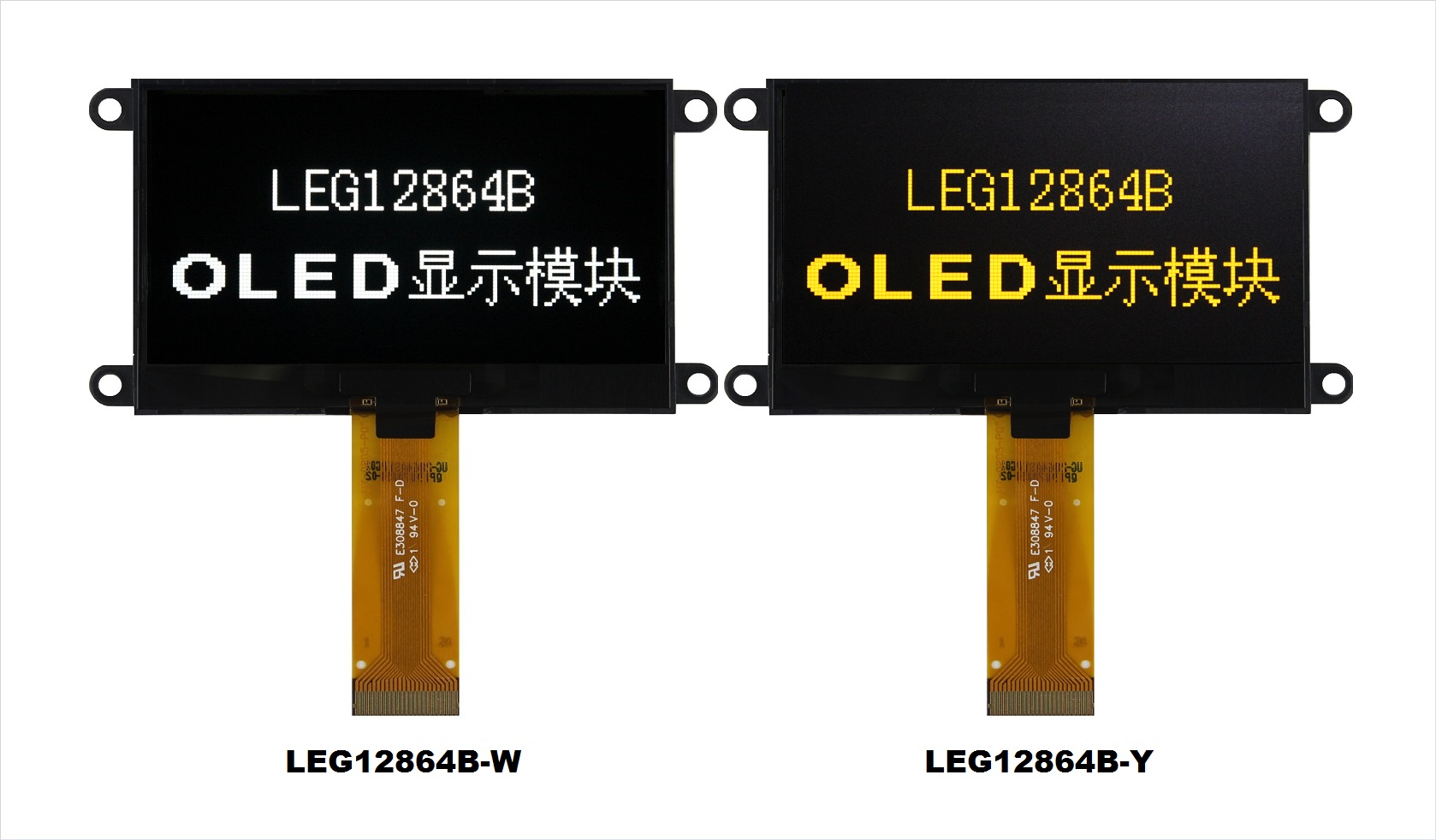

128x64 2.42 LEG12864B LEG12864B 73.5x39.0x3.5 57.0x29.5 0.43x0.43 0.40x0.40 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z

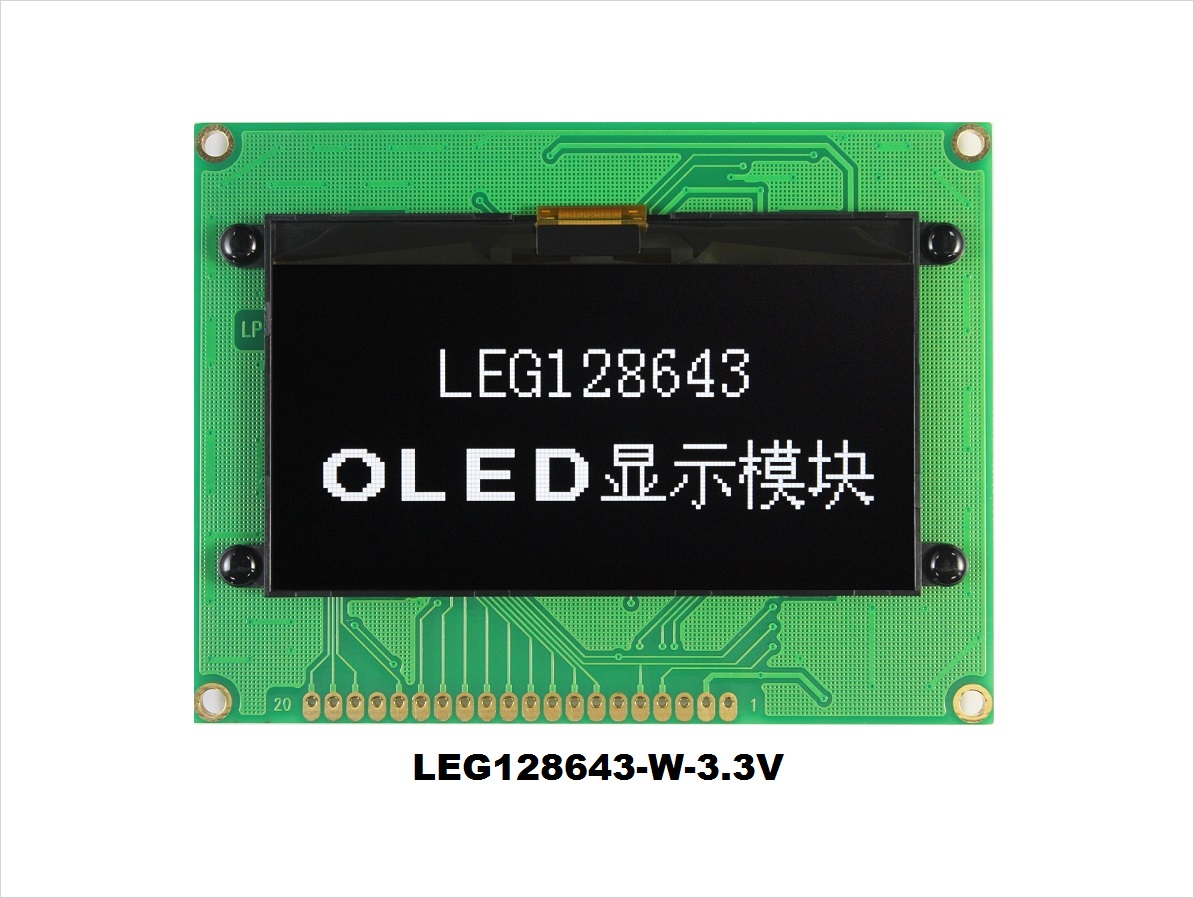

128x64 2.7 LEG128643-3.3V LEG128643-3.3V 93.0x70.0x8.5 63.4x32.7 0.48x0.48 0.45x0.45 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z
128x64 2.7 LEG128643-5V LEG128643-5V 93.0x70.0x8.5 63.4x32.7 0.48x0.48 0.45x0.45 8-BIT 68/80, SPI, I2C 3.3-5.5 SSD1309Z

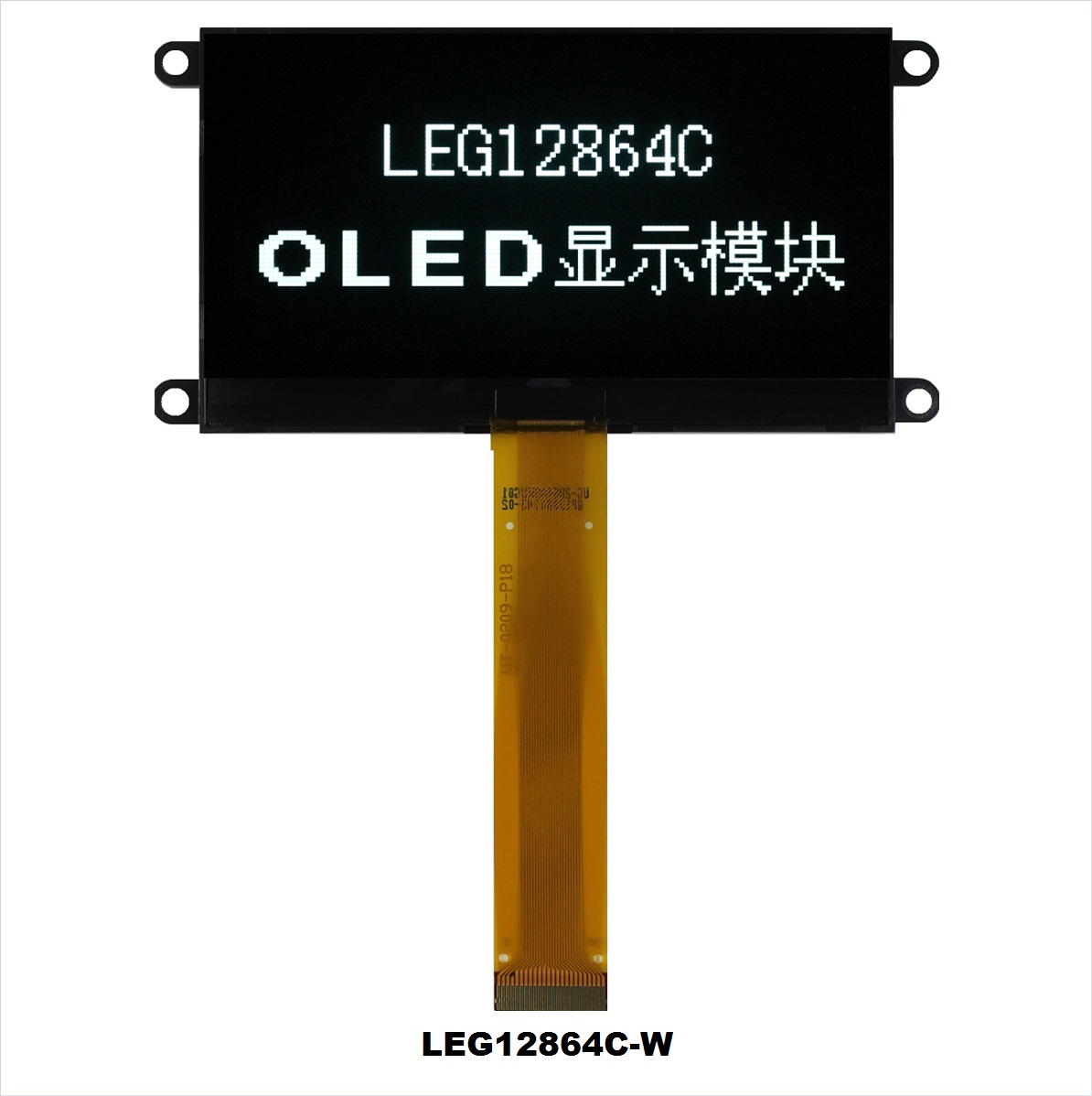

128x64 2.7 LEG12864C LEG12864C 86.0x44.0x3.5 63.4x32.7 0.48x0.48 0.45x0.45 8-BIT 68/80, SPI, I2C 3.3 SSD1309Z
